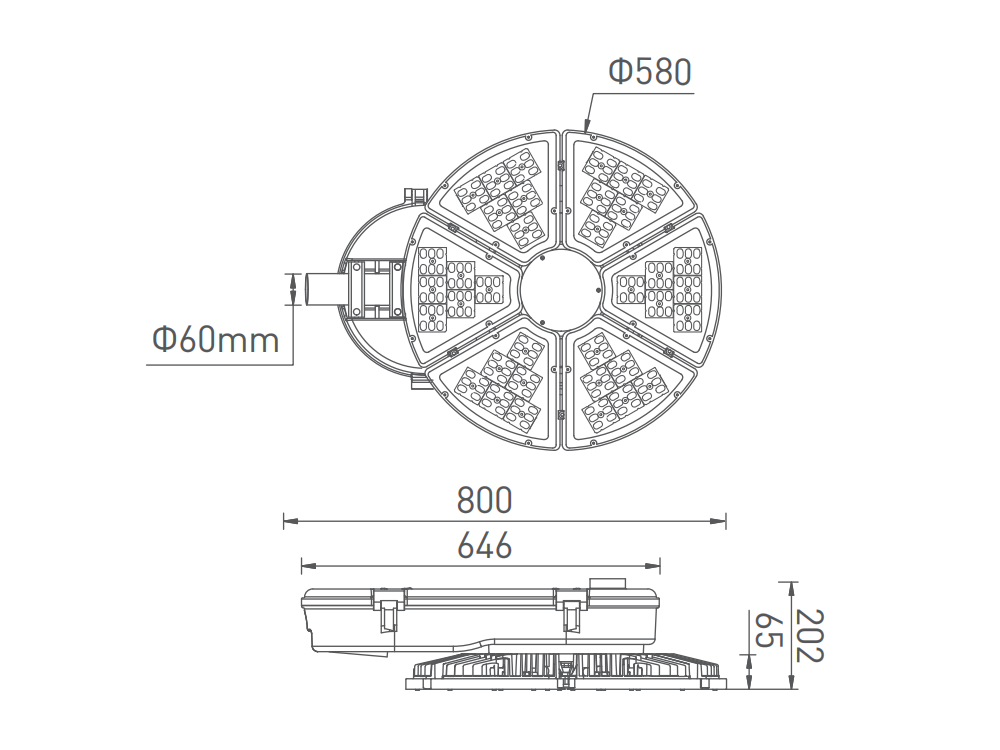

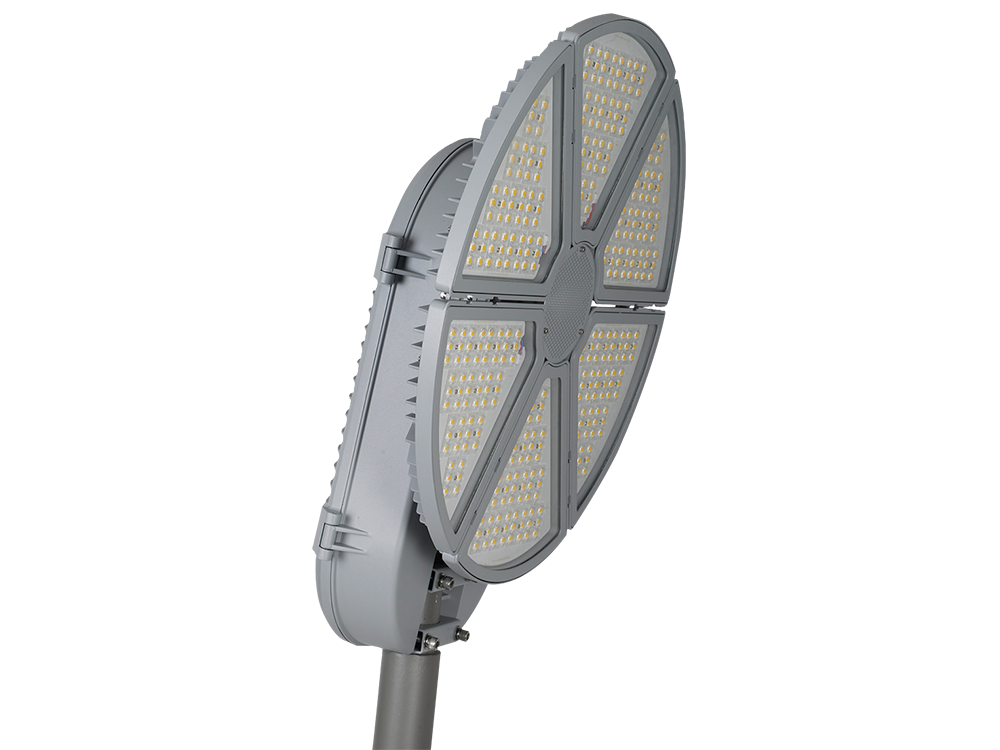

Six detachable fan-shaped LED modules arranged in a circular layout, with a central honeycomb heat sink, die-cast aluminum housing, angle-adjustable pole mount, and independent wiring for each module.
Suitable for Parks, courtyards, plazas, scenic spots, residential green belts and hotel outdoor landscapes.
Single-module replaceable for low maintenance; great ventilation heat dissipation; customizable power; wide even lighting; decorative circular outlook, durable for all outdoor weather.
| Body | Die-Cast Aluminum and PC |
| Optical System | Anodized Aluminum reflector with PC/PMMA diffuser |
| Electric | Quick on/off connector (for open condition) |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Surge Protection | 10kV, 10kA |
| Options | Photocell, NEMA Socket, Zhaga |
| Certification | / |
| Modle name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| Helios-S | 120 | 200-440 | ≥0.98 | 0.32 | 20 | 26.4 |
| 144 | 280-500 | |||||
| 180 | 300-600 | |||||
| 216 | 400-660 | |||||
| 288 | 400-660 | |||||
| Helios-L | 240 | 420-800 | ≥0.98 | 0.42 | 30 | 31.5 |
| 288 | 600-800 | |||||
| 360 | 660-1000 | |||||
| 480 | 660-1000 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weihht /kg | Gross weihht /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | Helios-S | 800X610X250 | 1 | 230 | 26.4 | 6059 | 29 | 6656 | 0.122 | 28 |
| Helios-L | 860X730X250 | 1 | 175 | 31.5 | 5513 | 35 | 6125 | 0.16 | 28 | |
| 0 | 0 | 0.071 | 28 | |||||||
| 40GP Container 11.8*2.13*2.18 | Helios-S | 800X610X250 | 1 | 475 | 26.4 | 12551 | 29 | 13787 | 0.122 | 58 |
| Helios-L | 860X730X250 | 1 | 363 | 31.5 | 11419 | 35 | 12688 | 0.16 | 58 | |
| 0 | 0 | 0.071 | 58 | |||||||
| 40HQ Container 11.8*2.13*2.72 | Helios-S | 800X610X250 | 1 | 557 | 26.4 | 14715 | 29 | 16164 | 0.122 | 68 |
| Helios-L | 860X730X250 | 1 | 425 | 31.5 | 13388 | 35 | 14875 | 0.16 | 68 | |
| 0 | 0 | 0.071 | 68 | |||||||
| POLE HEIGHT | 20M | 30M |
| HELIOS-S | 200-660 | |
| HELIOS-L | 660-1000W |
