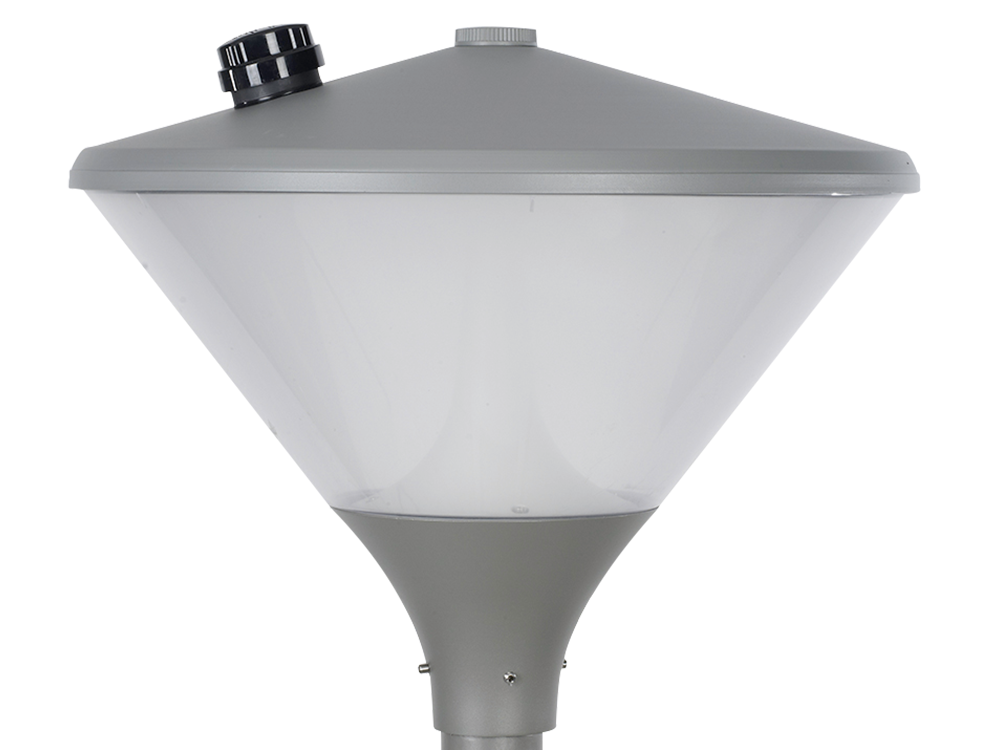

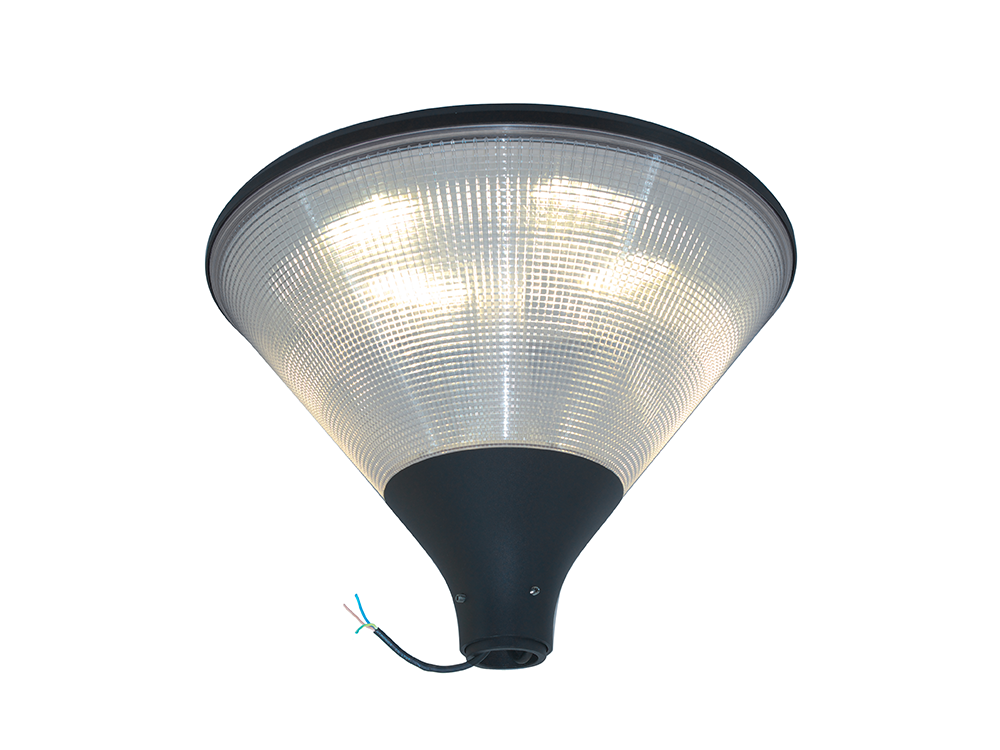

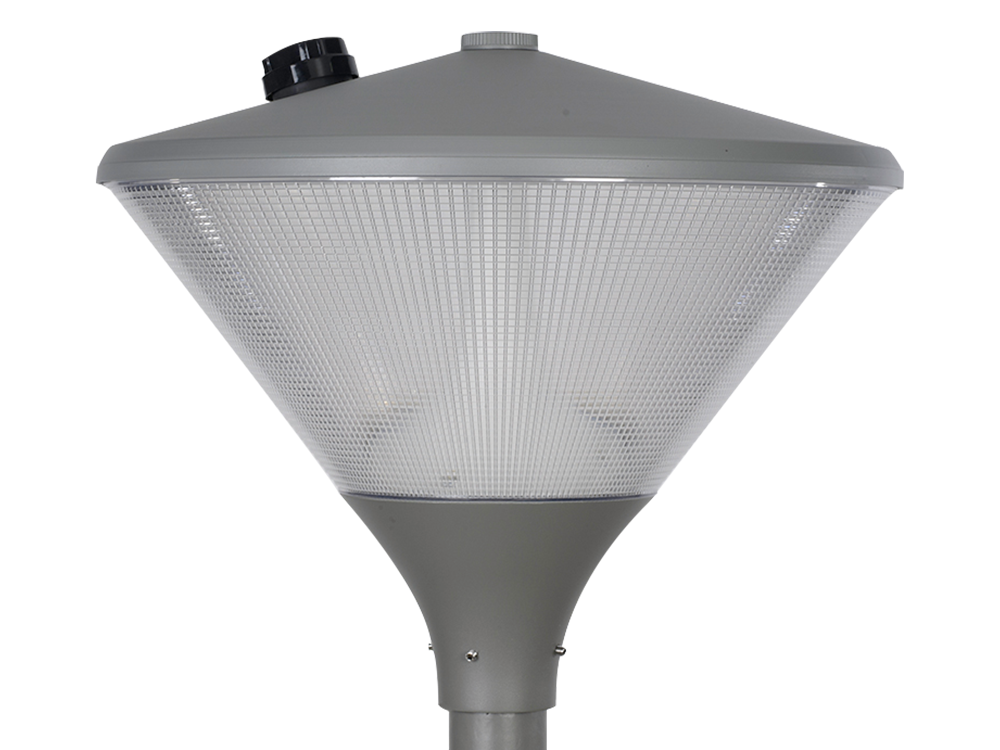

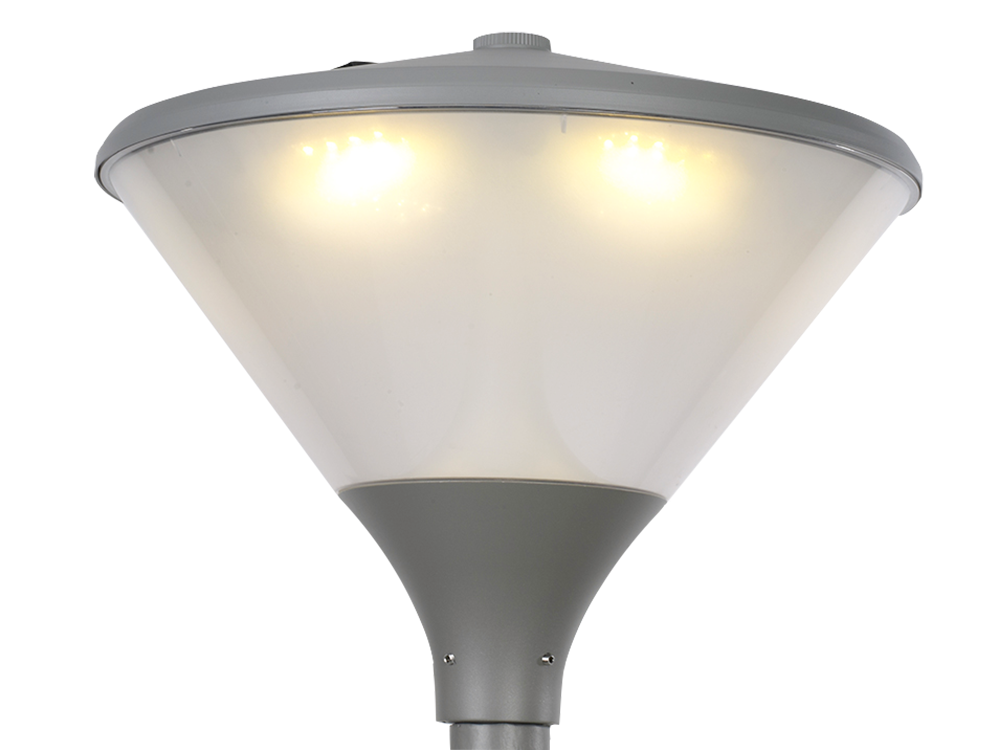

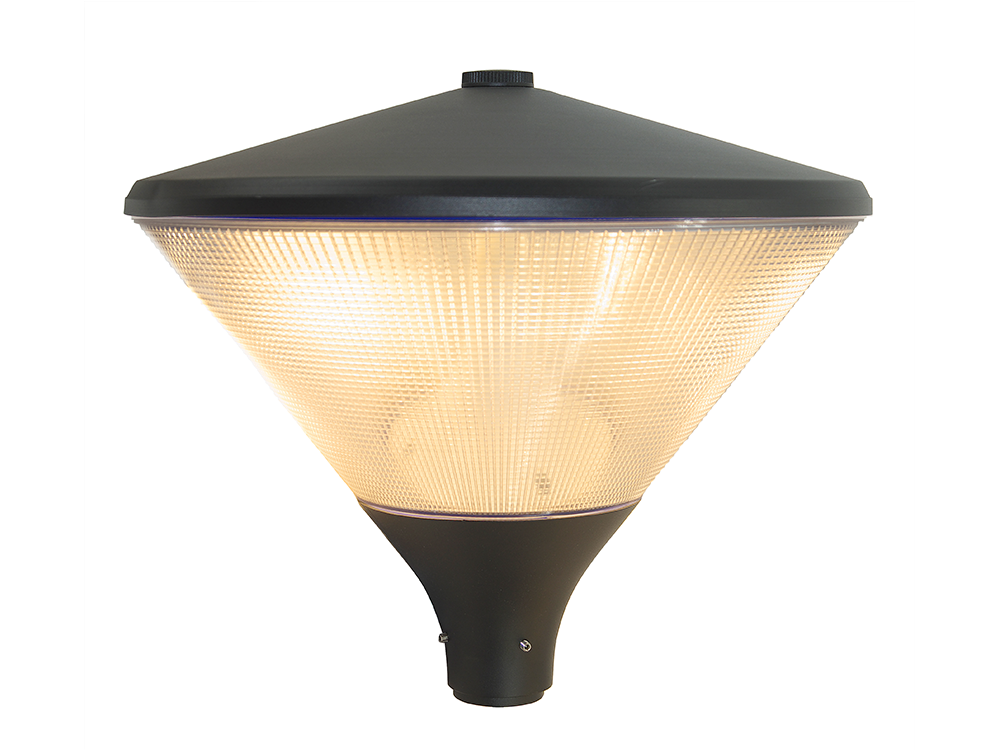

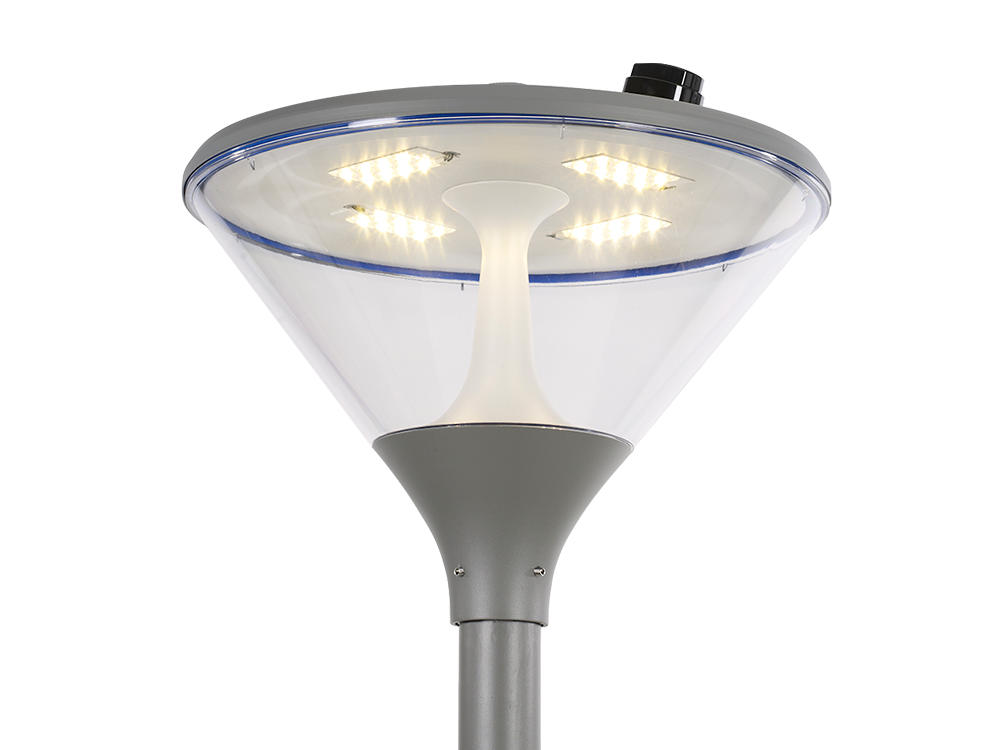

die-cast aluminum head paired, featuring a sealed all-weather waterproof enclosure and a standard top pole mount socket.

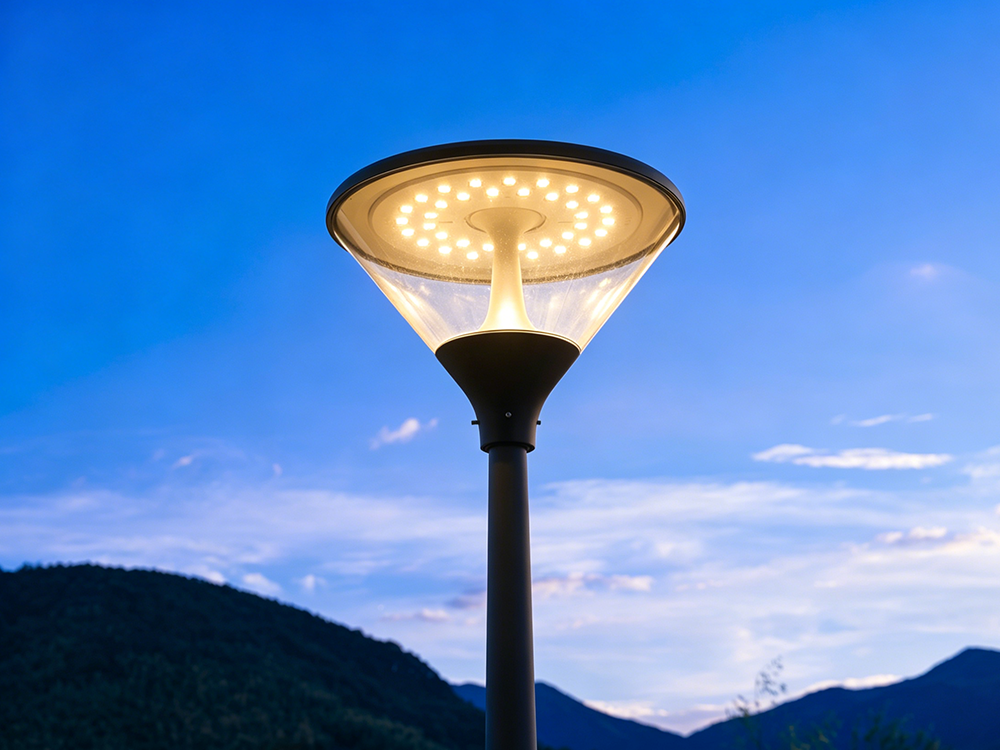

Suitable for Courtyards, parks, plazas, scenic zones and residential landscape walkways.

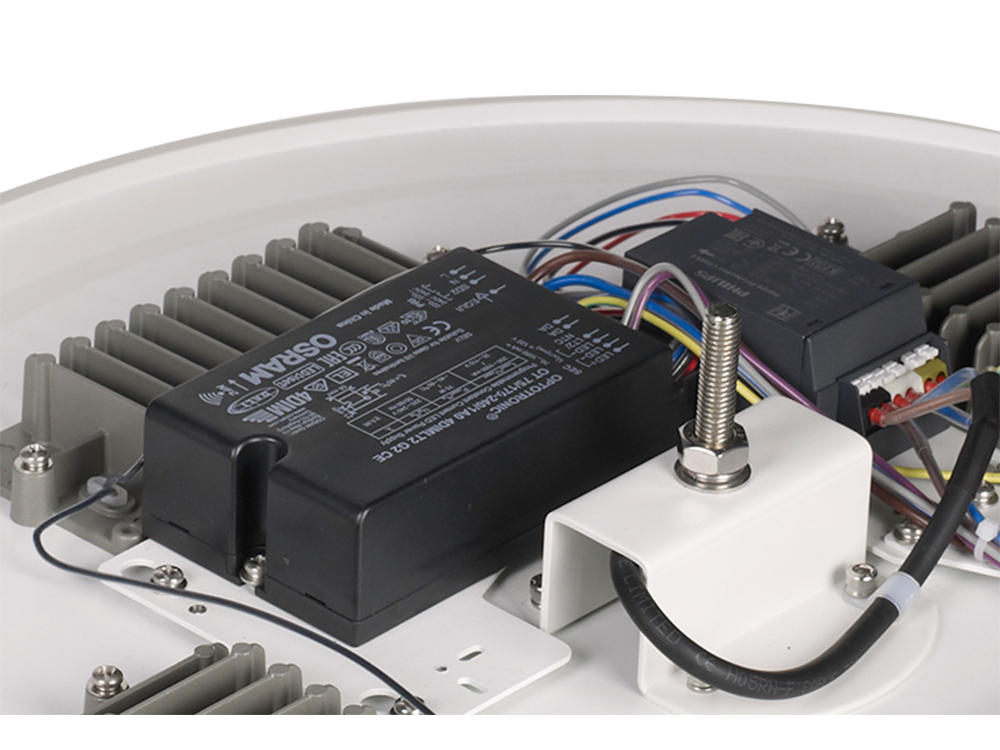

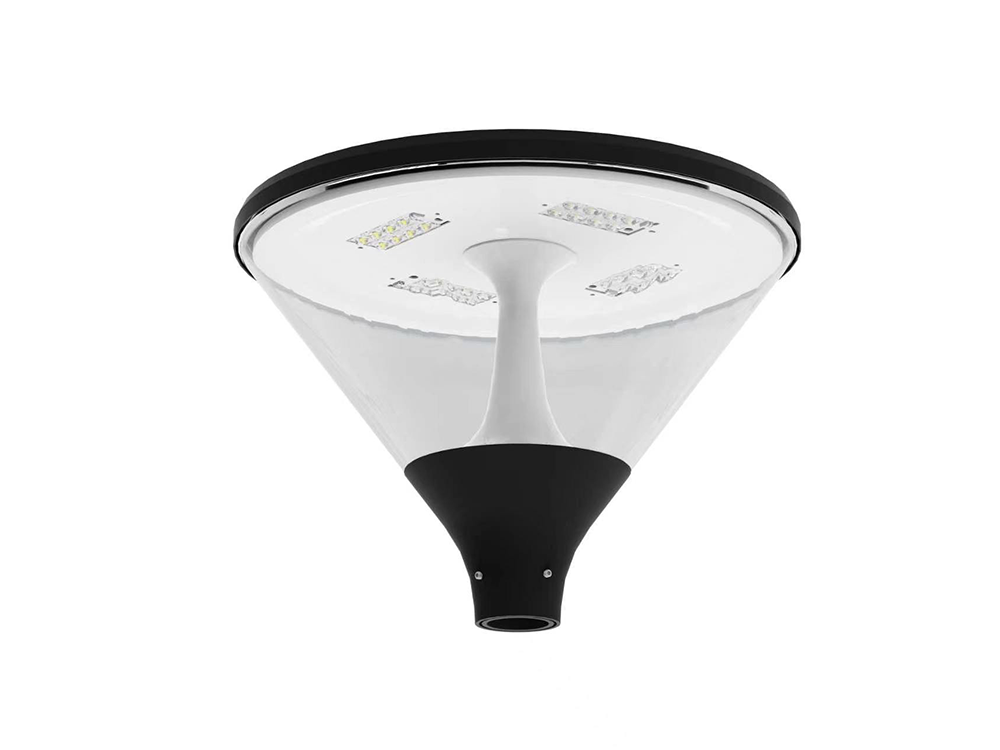

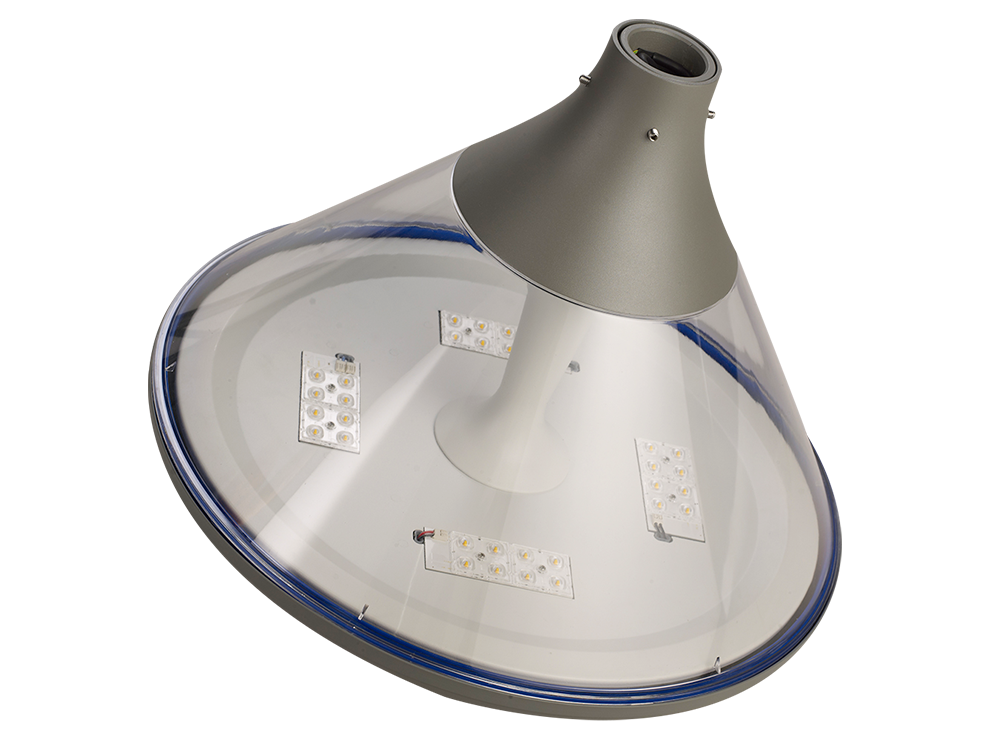

Easy single-module replacement, even soft lighting, classic decorative shape, efficient heat dissipation, fully weatherproof for outdoor use.
| Body | Die-Cast Aluminum and PC |

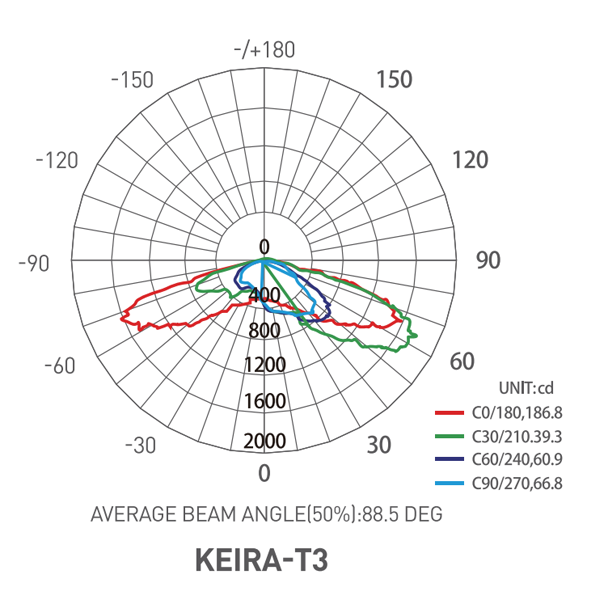

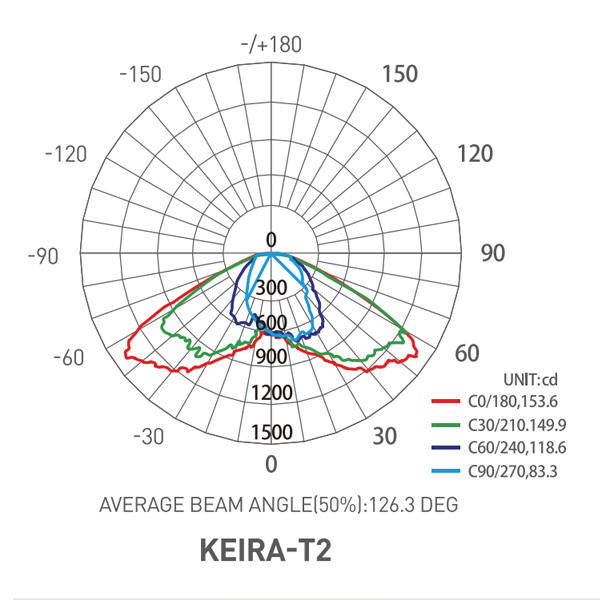

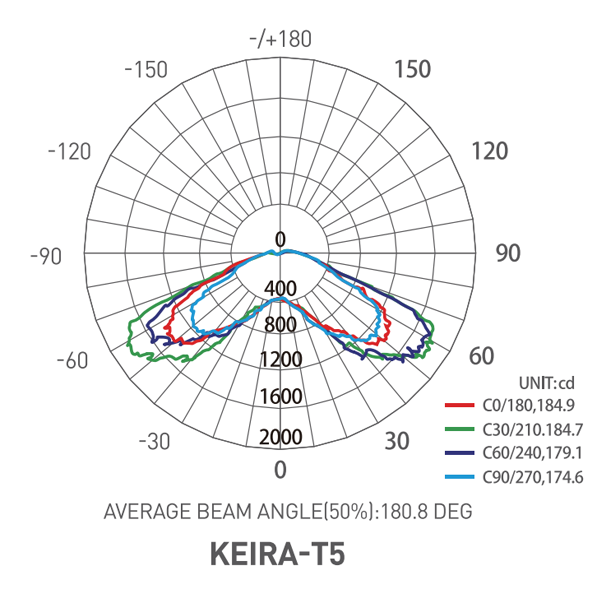

| Optical System | Type I-V or Customized special |
| Input | Voltage: 200v-240VAC,frequency: 50/60Hz |
| Finishing | Surface anti-aging electrostatic spray processing |
| Color Temperature | 2200K to 6500K |
| Ambient Environment | -40°C to +55°C |
| Control Inputs | DALI, 0-10V, Astro Dim, Step Dim |
| Insulation Class | Class I / Class II |
| IP Rating | IP66 |
| IK Rating | IK09/IK10 |
| Surge Protection | 10kV, 25kV,10kA |

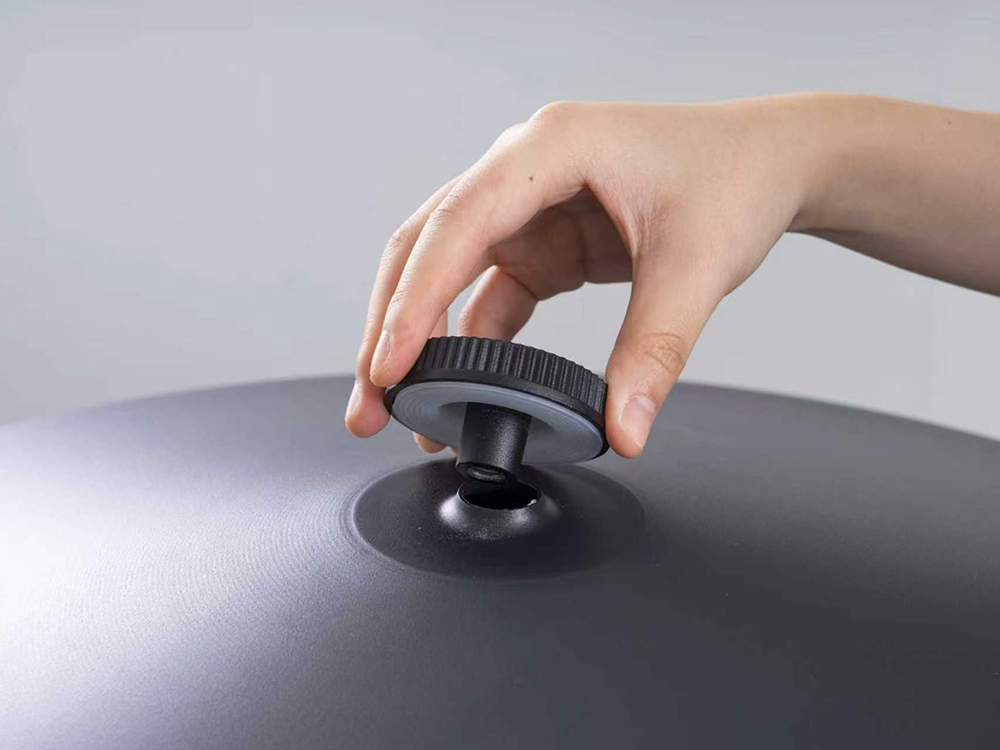

| Options | Photocell, NEMA Socket, Zhaga |
| Certification | CE, CB, ENEC, EMC, TM21, LM79, IEC-62471 |
| Modle name | LEDs | Power(W) | PF | Max wind load area | Installation Height(M) | Weight(Kg) |
| Keira | 16 | 20-50 | ≥0.95 | 0.31 | 6 | 26.4 |
| 24 | 40-75 | |||||
| 32 | 50-100 |
| Container size(M) | Model | Carton size(MM) | Quantity per carton(pcs) | Quantity per container(pcs) | Net weihht /kg | Gross weihht /kg | x | x | ||
| per/1pc | per/ container | per/1pc | per/ container | |||||||
| 20GP Container 5.85*3.23*2.15 | Keira | 620X620X550 | 1 | 133 | 10 | 1333 | 12 | 1600 | 0.21 | 28 |
| 0.16 | 28 | |||||||||
| 0 | 0 | 0.071 | 28 | |||||||
| 40GP Container 11.8*2.13*2.18 | Keira | 620X620X550 | 1 | 276 | 26.4 | 7291 | 29 | 8010 | 0.21 | 58 |
| 0.16 | 58 | |||||||||
| 0 | 0 | 0.071 | 58 | |||||||
| 40HQ Container 11.8*2.13*2.72 | Keira | 620X620X550 | 1 | 324 | 26.4 | 8549 | 29 | 9390 | 0.21 | 68 |
| 0.16 | 68 | |||||||||
| 0 | 0 | 0.071 | 68 | |||||||
| POLE HEIGHT | 4 | 6 |
| Keira | 20-50 | 50-100 |
